单管体水下管

单管体水下管 “CY51”系列
SINGLE CARCASS SUBMARINE HOSE "CY51"SERIES

CDSR提供一系列高品质、高性能、吸排油管。CDSR单管体水下软管为诸如MBM,CALM,SAML配置（即陡‘S式’、 懒‘S式’、灯笼式这些高度集成的海底设施而设计）。
CDSR provide a range of high quality, high performance, oil suction and discharge hoses. The CDSR single Carcass Submanine hoses are designed for highly integrated sub-sea installations, such as MBM,CALM, SAML configurations (i.e.Steep 'S',' Lazy ',' S',Chinese Lantern).

CDSR输油软管完全符合GMPHOM 2009要求，并且在符合ISO 9001标准的质量管理体系下设计与制造。
The CDSR hose fully comply with the requirements of the “GMPHOM 2009”，and are designed and manufactured under a quality system in accordance with ISO 9001.

关于性能、特点和规格，请参考“单管体软管规格”。
For performance characteristics and specification,Please refer to "single Carcass Hose specifications".

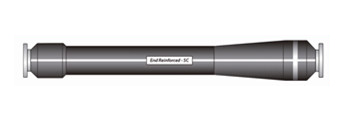

51210 SSC-端部加强型无挡圈（浮标端） 51210 SSC- End Reinfortced without float collars (i.e.under Buoy)

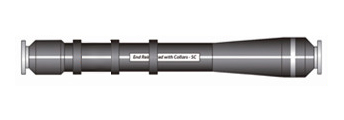

51310 SSCC-端部加强型无挡圈（浮标端）* 51310 SSCf- End Reinfortced with float collars (i.e.under Buoy)

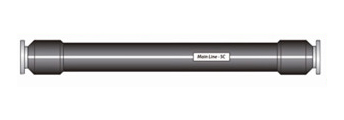

51220 SSC-主线型无挡圈 51220 SSC-Main Line without float collars

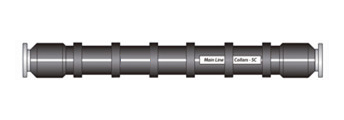

51320 SSCC-主线型含挡圈 51320 SSCC- Main Line with float collars

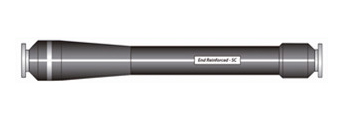

51230 SSC－端部加强型无挡圈（PLEM端） 51230 SSC－End Reinforced without float callars (i.e.off PLEM)
