单管体漂浮管

单管体漂浮管  “CY51”系列
SINGLE CARCASS FLOATING HOSE  "CY51"SERIES

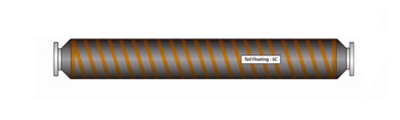

51160FSC-漂浮式尾管 51160FSC-Tail Floating

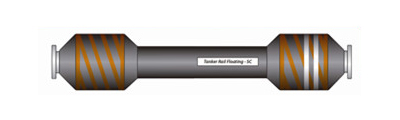

51170FSC-漂浮式油轮围栏型 51170FSC-Tanker Rail Floating

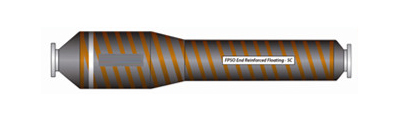

51180FSC-FPSO-端部加强型高浮力漂浮管（FPSO首件管，适配ERC）* 51180FSC-FPSO- End Reinforced High Buoyancy Floating (ie.First off FPSO to support ERC)*

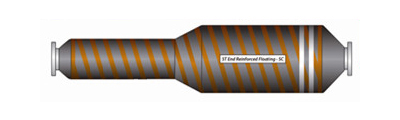

51190FSC-端部加强型高浮力漂浮管（连接运输油轮，适配HEV）* 51190FSC-ST End Reinforced High Buoyancy Floating （ie.Shuttle Tanker connection to support HEV）*

注意
NOTE

CDSR单管体漂浮软管专为诸如FPSO、FSO串联卸油配置这些高度集成的水面设施上的特殊端部连接应用而设计。
The CDSR Single Carcass Floating hosees designed for special end connection applications in highly integrated surface installations such as FPSO, FSO Tandem offloading configurations.

特殊软管可被安装在漂浮管线的未端。连接FPSO/FSO悬挂的紧急释放节（ERC）和运输油轮船首装油系统的软管末端阀（HEV）。
The Special hoses can be installed at the ends of the floating hosestring. Connect to the FPSO/FSO hang-off Emergency Release Coupling (ERC) and the Shuttle Tanker bow loading system Hose End valve (HEV).

如果ERC紧急情况下释放，FPSO端的软管所配备的额外浮力使ERC保持在海面上。在软管转移和/或紧急释放时，运输油轮端的软管将使HEV保持在海面上。
The additional buoyancy within the special FPSO end hose will support the ERC on the surface of the sea,if released in an emergency.The Shuttle Tanker end hose will support the HEV on the surface of the sea, during hose transfer and/or emergency release.

关于性能、特点和规格，请参考“单管体软管规格”。
For performance characteristics and specification,Please refer to "single Carcass Hose specifications".
